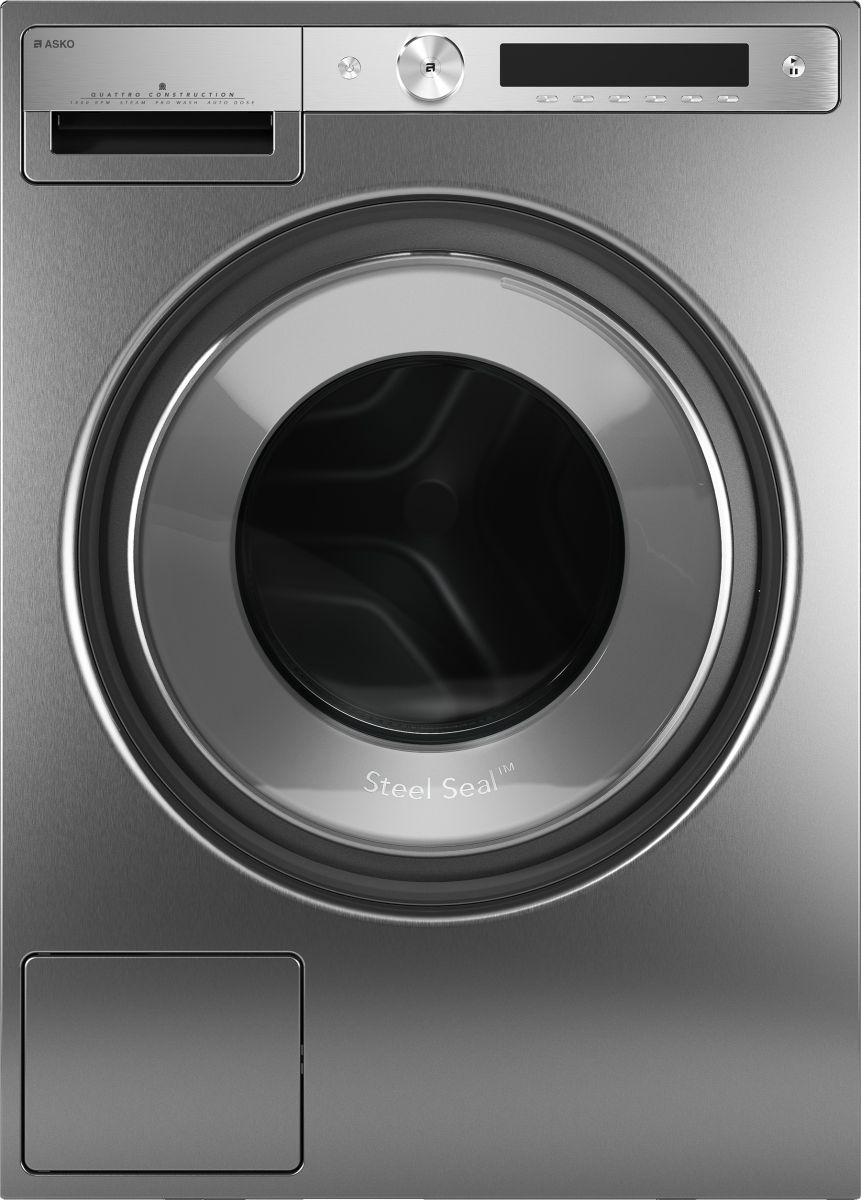

Washing machine

Washing machine

Product group: Washing Machine
Installation: Freestanding
Loading capacity: 9 kg
Spin speed: 1800 rpm
Number of programs: 26 programs
Energy class: A+++
Main colour: Stainless Steel




Steel Seal™
Steel Seal™
Quattro Construction™
Quattro Construction™
Active drum
Active drum
Auto Dosing system
Auto Dosing system
Dose Assist
Dose Assist
Pro Wash™
Pro Wash™
Steel Seal™
Steel Seal™

Steel Seal™

Rubber bellows degrade over time and trap dirt. Eliminating the rubber bellow ensures a hygienic wash and leakage free door. Thanks to the large Steel Seal™ opening it is also more accessible.
Quattro Construction™
Quattro Construction™

Quattro Construction™

Vibration-free spinning

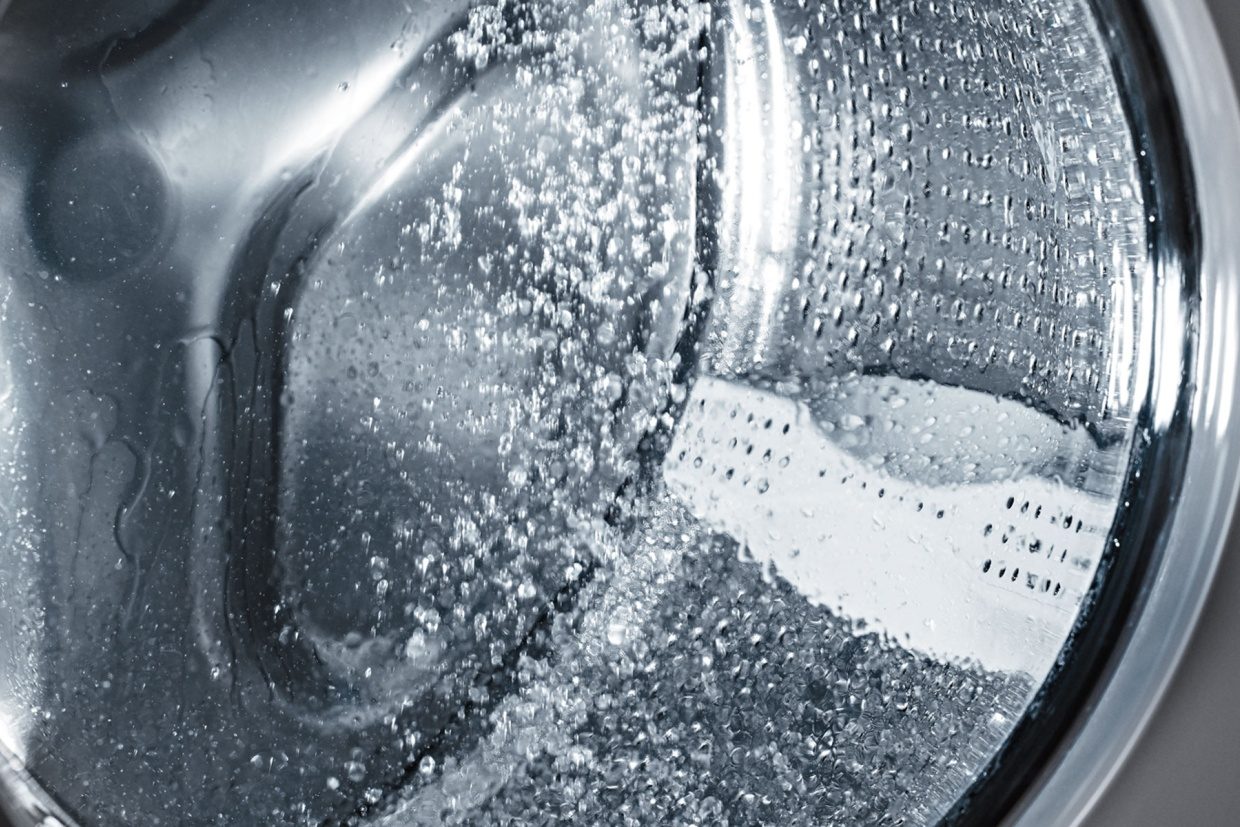

Active drum
Active drum

Active drum

With Active Drum ™ the hour-glass shaped, removable lifters and the slanted drum move the laundry to the drum centre to reduce fabric wear. Dirt is removed via bigger holes at the edge.
Auto Dosing system
Auto Dosing system
Auto Dosing system

Auto Dosing system

The Auto Dose system calculates the perfect volume of detergent for every load based on the wash load, dirtiness, water quality, and the chosen program and temperature. No struggle.
Auto Dosing system
Dose Assist
Dose Assist
Dose Assist

Dose Assist

Start the Dose Assist function and stop worrying about using the right amount of detergent. Instead of struggling yourself, let the washing machine measure exactly the right detergent dose. Our washing machines with the Dose Assist function gives you the correct measure of detergent based on the wash load, dirtiness level, water hardness, program type and temperature. The perfect dose every time and no more overdosing.
Pro Wash™
Pro Wash™

Pro Wash™

The Pro Wash™ system circulates fluid to the top of the drum. The laundry is soaked efficiently to ensure superb performance also with short washing cycles. A fast track to professional washing.


Wool/hand program
Dark wash
Time program
Easy care
Drum cleaning
Quick Pro
Allergy program Cotton
Allergy synthetics program
Sport Wash
Conditioning program
Steam refresh
Eco 40–60 °C


Adjustable spin speed: Adjustable spin speed
Super Rinse™ - extra rinses added.
Super wash
High water level
Anticrease function


Normal mode, Green mode, Allergy mode, Speed mode, Intensive mode, Night mode

Construction & Performance

Quattro Construction™ – vibration-free spinning
Door: Steel Seal™ - hygienic door sealing
Long lasting stainless steel drum
Active Drum™ - for a careful yet effective wash cycle.
Heater power: 2000 W
Precise temperature control (max deviation: +/- 1 °C)
Water level sensor
Drum volume: 60 l
Drum volume (USA): 2,1 cu ft
Durable brushless motor
Automatic Dosing System: Integrated
Pro Wash system - extra effective washing and rinsing

Use & flexibility

Easy close door
Liquid detergent insert
Detergent compartment auto cleaning function
Temperature range: Cold-90°C
Door diameter: 31 cm
Door opening angle: 110 °
Drum illumination: Yes
Dose assist

Interaction & Control

Delayed Start
Remaining time indicator

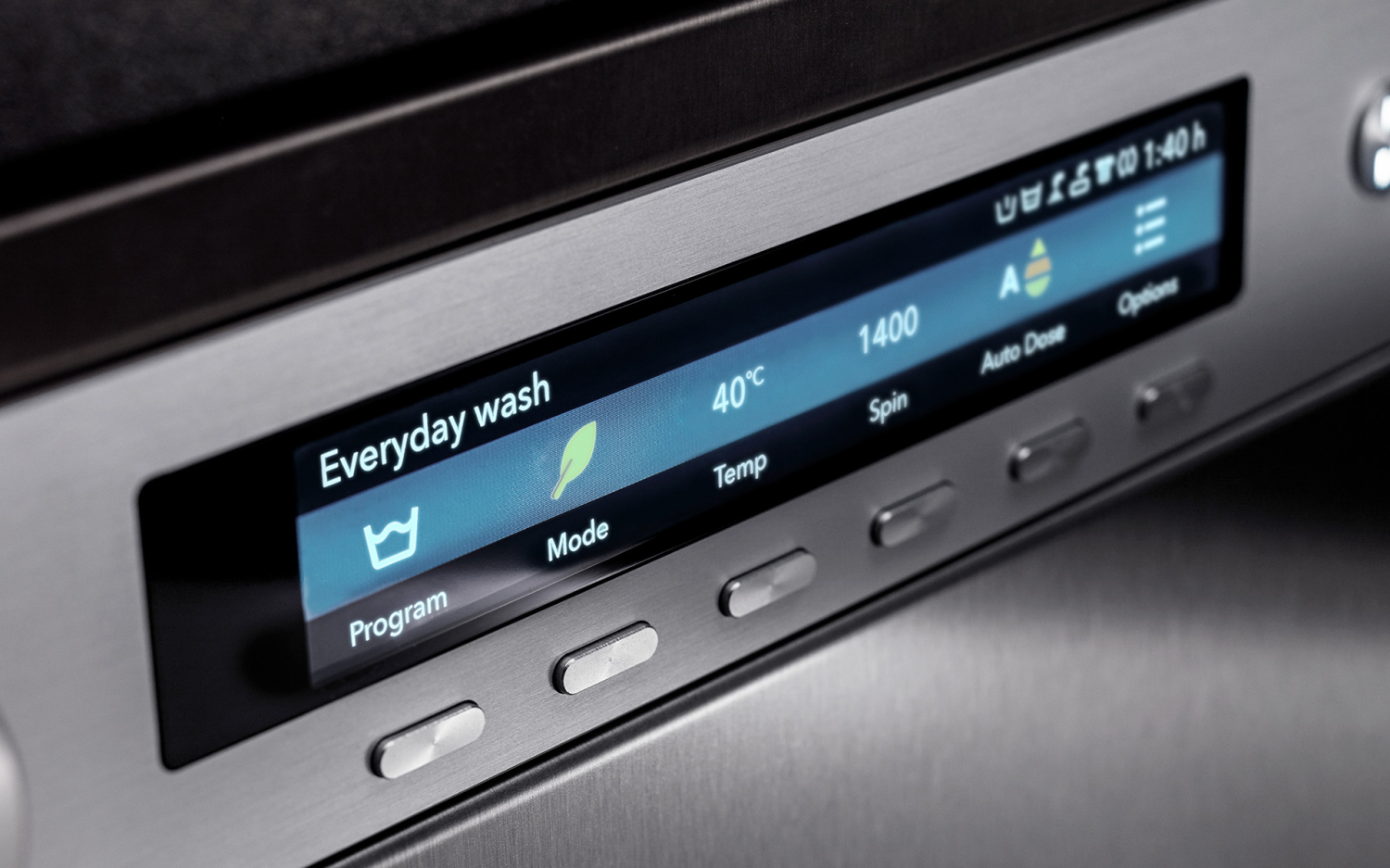

Type of display: LCD display
26 programs

Design & integration

Door opening: Hinge on left side
Adjustable feet: 10 mm
ASKO tumble dryer can be mounted on top of the washer
Size 3/4" - Can be connected to hot and cold water
Loading position: Front

Safety & Maintenance

Removable lifters for easy cleaning
Waterproof bottom plate
Maximized water inlet time
PEX inlet hose
Anti Block™ - Self cleaning drain pump.
Overflow protection
Emergency door opening key
Lockable control panel
Unbalance detection - protects the washer against harmful vibrations.
Draining capacity: 20 l/min
Overheat protection
Thermal and electonic protection against overheating

Technical data

Water remaining after spin: 43 %
Heater power: 2000 W
Drum volume: 60 l
Water connection: Size 3/4" - Can be connected to hot and cold water
Counter weight material: Cast iron
Counter weight (kg): 20,1 kg
Noise level: 77 dB(A)re 1 pW
Noise level washing: 50 dB(A)re 1 pW
Estimated annual water consumption: 10590 l
Power consumption in standby mode: 0,7 W
Power consumption in off mode: 0,3 W
Energy class: A+++
Connected load: 2200 W
Voltage (V): 220-240 V
Number of phases: 1
Fuse: 13 amp
Frequency: 50 Hz
Net weight: 88,5 kg
ISO 14001: Yes


Product dimensions (HxWxD): 85 × 59,5 × 58,5 cm
Adjustable feet: 10 mm
Depth with door open: 942 mm
Length electrical cord: 2,1 m
Length inlet hose: 150 cm
Length outlet hose: 160 cm

Logistic information

Dimensions of packed product (HxWxD): 92 × 64 × 66,1 cm
Gross weight: 91,7 kg
Product code: 738515
EAN code: 3838782512711
Market: Domestic
Range: Style
